- Commodity name: ElectroMag
- Mgo Content:: 1
- typ：: 1
- Appearance: : 1
- Powder/Granular/Pellet Grain Size: 1
- Other indicators：: 1

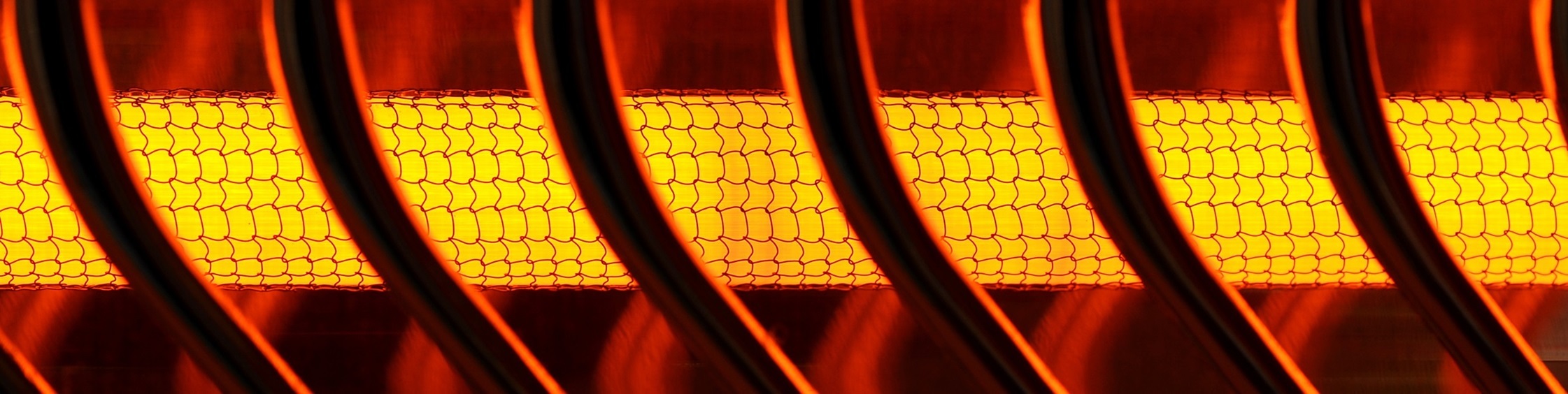

ElectroMag is developed as insulating fillers to be used in Heating Element. ElectroMag plays a superexcellent role of insulation and thermal conduction. It is widely used in civil and industrial heating elements.

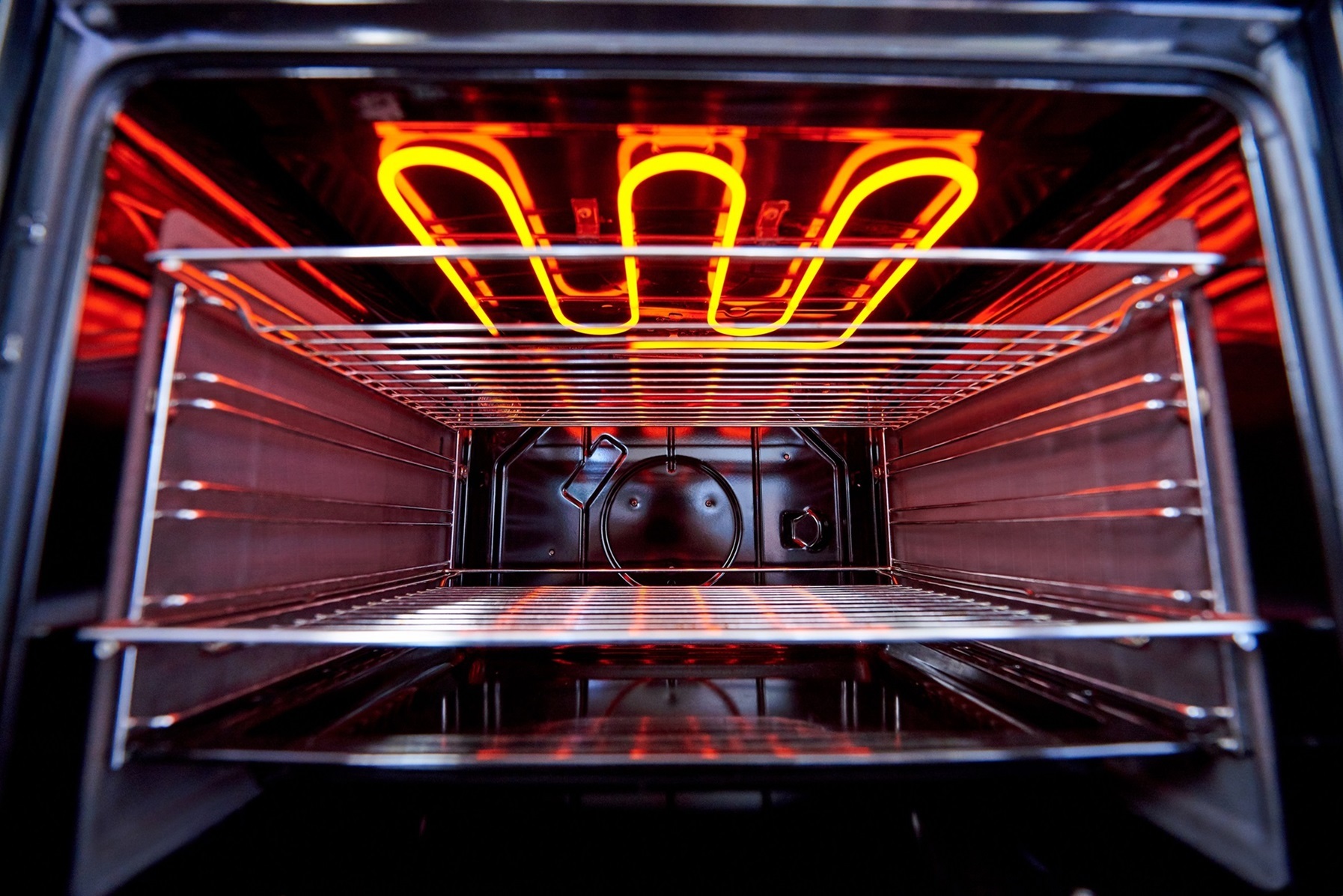

High temperature ElectroMag can work above 600℃ and withstand 1050℃, being mainly used to make medium or high load of air conditioning heating elements, such as oven tubes. Draining moisture and sealing treatment are required.
Medium temperature ElectroMag can work at 400℃ - 600℃ with excellent moisture-proof performance, being mainly used in various medium or low load electric heating elements, such as water heater tubes.
Low temperature ElectroMag can work below 400℃ with excellent moisture-proof performance, being mainly used for making low-load electric heating elements or liquid electric heating elements with low requirements, such as water dispenser tubes, electric iron tubes, and soy milk machine tubes.
-
25kg PP/PE bag.
Big PP bag with or without bottom spout, with or without PE liner.
Store product in a dry area, remaining sealed.
Shelf life is 24 months under good storage condition.
-

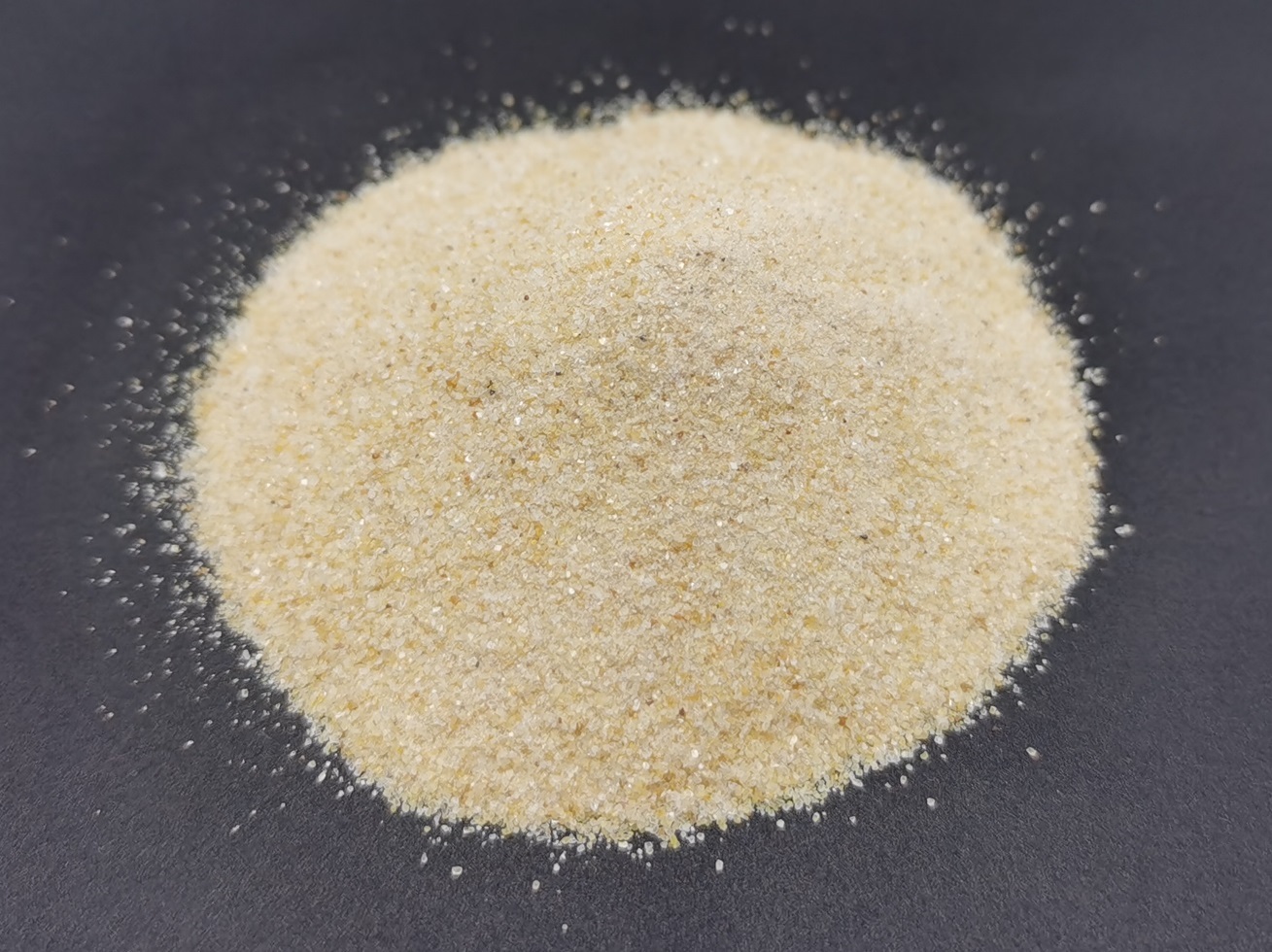

ElectroMag is an electrical grade magnesium oxide with superior fine particles control and excellent chemical stability, moisture resistance and electrical insulation.
-
-
Main Properties Mgo Content 96 ± 2 Flow Rate 150 ± 20 Appearance Golden Powder Temperature Application High/Medium/Low Temp. Leakage Current @ 8 W/cm2 0.2 mA max.
- Main Uses & Advantages
- Packaging & Storage
- 概要位置
- 顶部大图
- 蓝色模块数据小图
-
- Commodity name: ElectroMag
- Mgo Content:: 1
- typ：: 1
- Appearance: : 1
- Powder/Granular/Pellet Grain Size: 1
- Other indicators：: 1
ElectroMag is developed as insulating fillers to be used in Heating Element. ElectroMag plays a superexcellent role of insulation and thermal conduction. It is widely used in civil and industrial heating elements.
High temperature ElectroMag can work above 600℃ and withstand 1050℃, being mainly used to make medium or high load of air conditioning heating elements, such as oven tubes. Draining moisture and sealing treatment are required.
Medium temperature ElectroMag can work at 400℃ - 600℃ with excellent moisture-proof performance, being mainly used in various medium or low load electric heating elements, such as water heater tubes.
Low temperature ElectroMag can work below 400℃ with excellent moisture-proof performance, being mainly used for making low-load electric heating elements or liquid electric heating elements with low requirements, such as water dispenser tubes, electric iron tubes, and soy milk machine tubes.
-
25kg PP/PE bag.
Big PP bag with or without bottom spout, with or without PE liner.
Store product in a dry area, remaining sealed.
Shelf life is 24 months under good storage condition.
-
ElectroMag is an electrical grade magnesium oxide with superior fine particles control and excellent chemical stability, moisture resistance and electrical insulation.
-
-
Main Properties Mgo Content 96 ± 2 Flow Rate 150 ± 20 Appearance Golden Powder Temperature Application High/Medium/Low Temp. Leakage Current @ 8 W/cm2 0.2 mA max.
| Main Properties | ||
| Mgo Content | 96 ± 2 | |
| Flow Rate | 150 ± 20 | |
| Appearance | Golden Powder | |
| Temperature Application | High/Medium/Low Temp. | |
| Leakage Current @ 8 W/cm2 | 0.2 mA max. | |
Recommended Applications
With heating elements like those found in small appliances like hair dryers, small heaters, kettles, for the device to operate well and not burn out, it is necessary for an insulating material to be added to the construction to make sure that the heating element works well. Magnesium oxide is such a popular insulating material.
